Product Description

ℹ️ Basic Information
Model NO.
Altai DP1
Battery Pack
Non Rechargeable Li-Mno2 Battery (12V, 6000 mAh)
Electrode Pads
Preinstalled, Adult/Child Compatible
Shock Output
Maximum 150 J (Adult), 50j (Child)
Storage
90 Minutes Each for ECG Data and Around Sounds
Data Retrieve
Bluetooth
Warranty
2 Year
Specification
320*230*85 mm
Origin
Guangdong, China
HS Code
9018199000
📋 Product Description

Altai DP1: Automatic External Defibrillator (AED Defibrillator) with High Capacity Battery, Preinstalled Pads

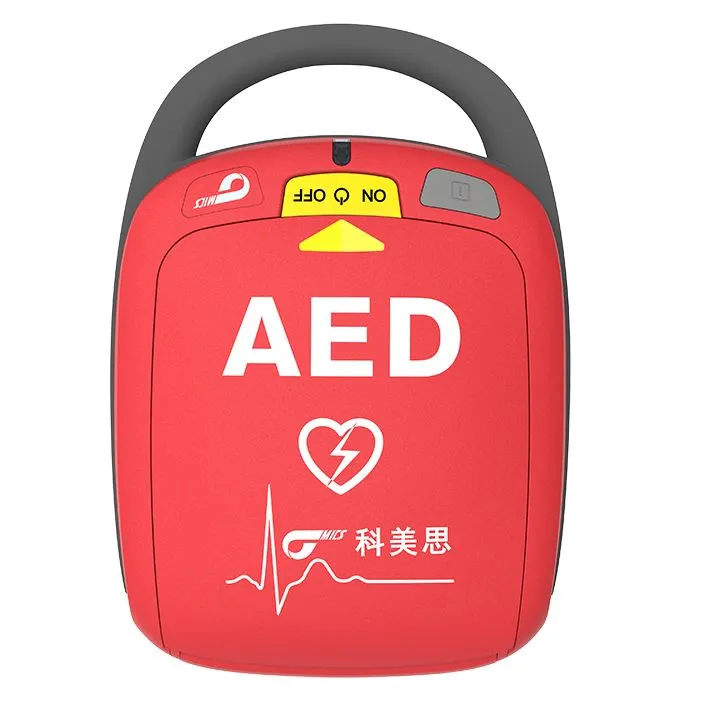

Altai DP1 AED Defibrillator

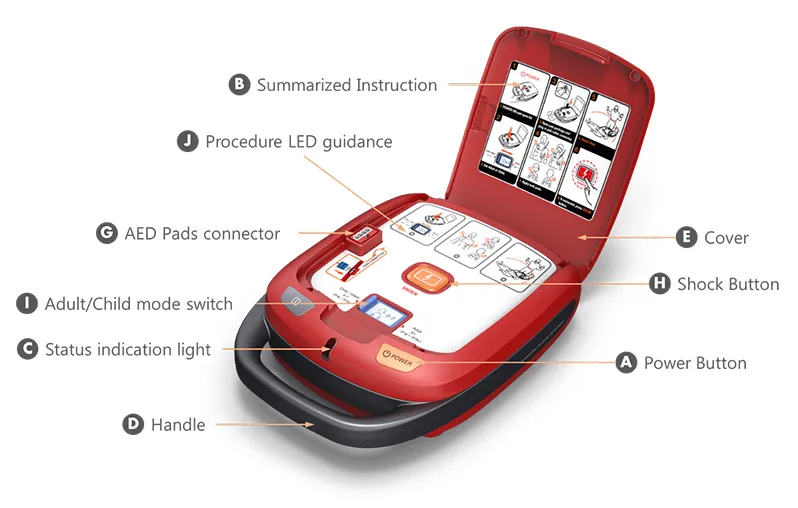

Key Features

✓Biphasic Truncated Exponential with low energy to minimize myocardial injury
✓Not rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
✓Automatic recording of ECG data & around sounds throughout the complete operating
✓Preinstalled electrode pads with compatibility to adult and child
✓One step operating for cover open and power on at the same time
✓Daily selftest and automatic selftest upon power on
✓Available with adult mode and child mode
✓Automatic voice guide throughout the complete operation
✓Automatic indication of unit status
✓Alarm of low battery capacity and change of new one
✓Optional PC software for data retrieve and download

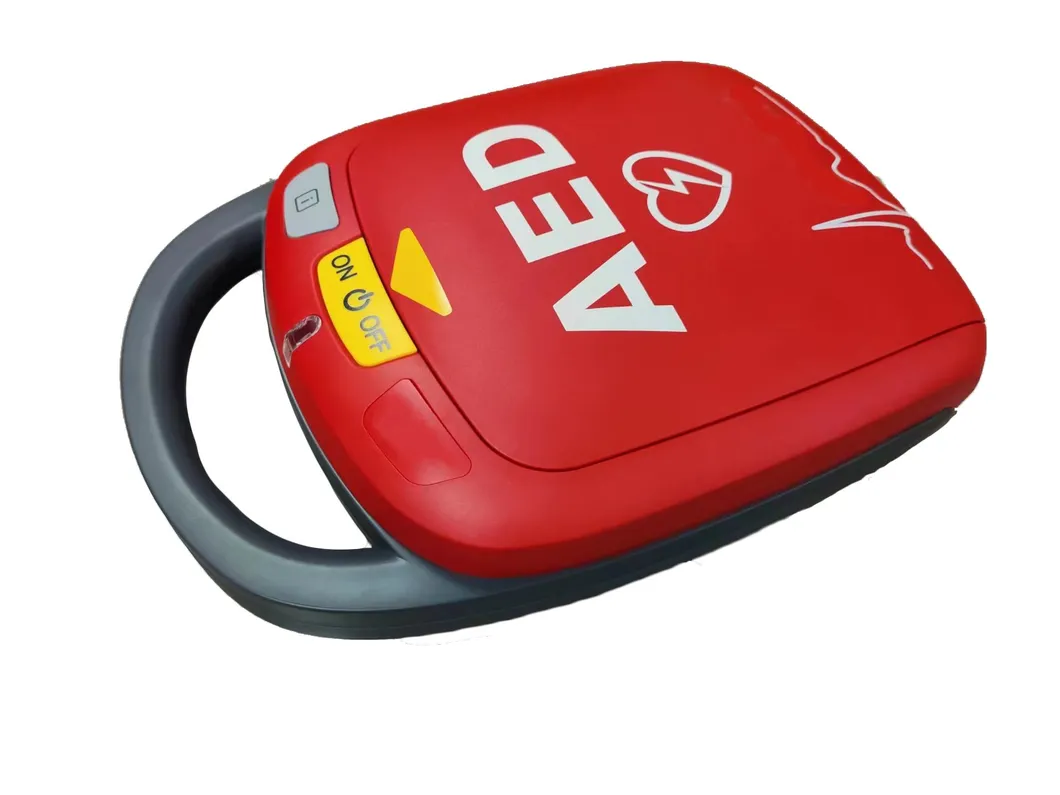

AED Feature 1

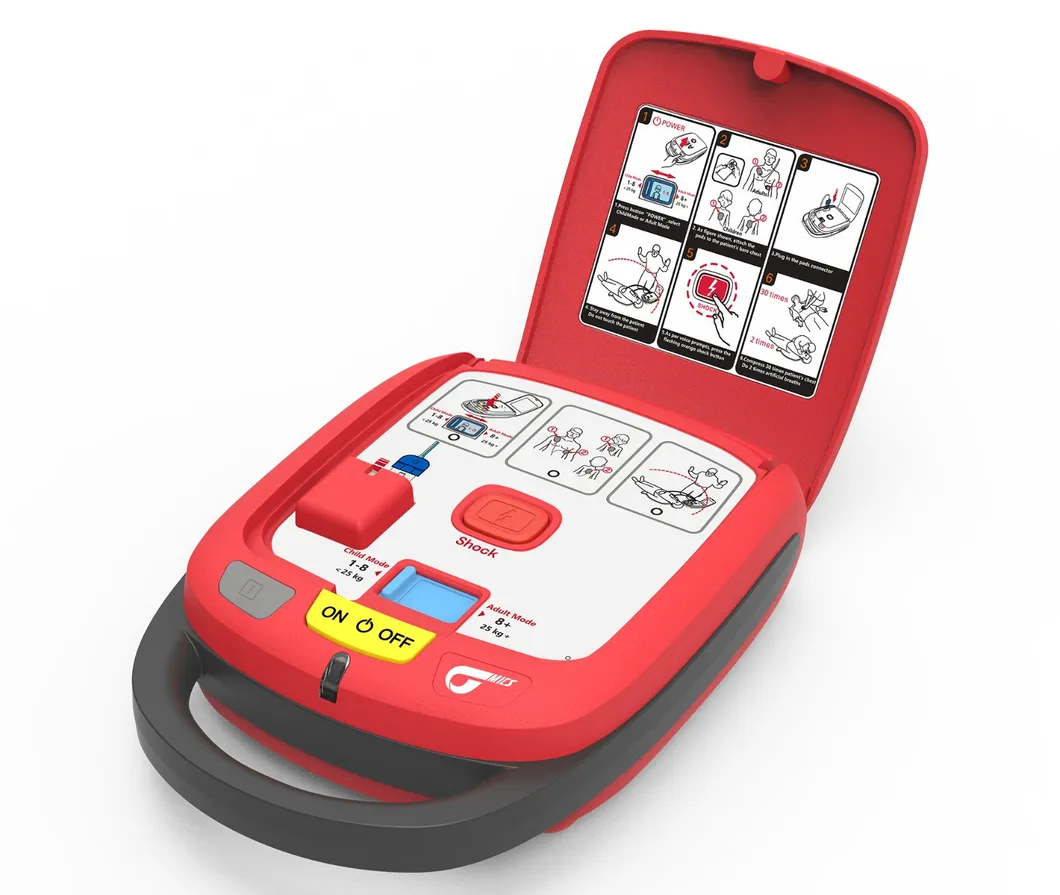

AED Feature 2

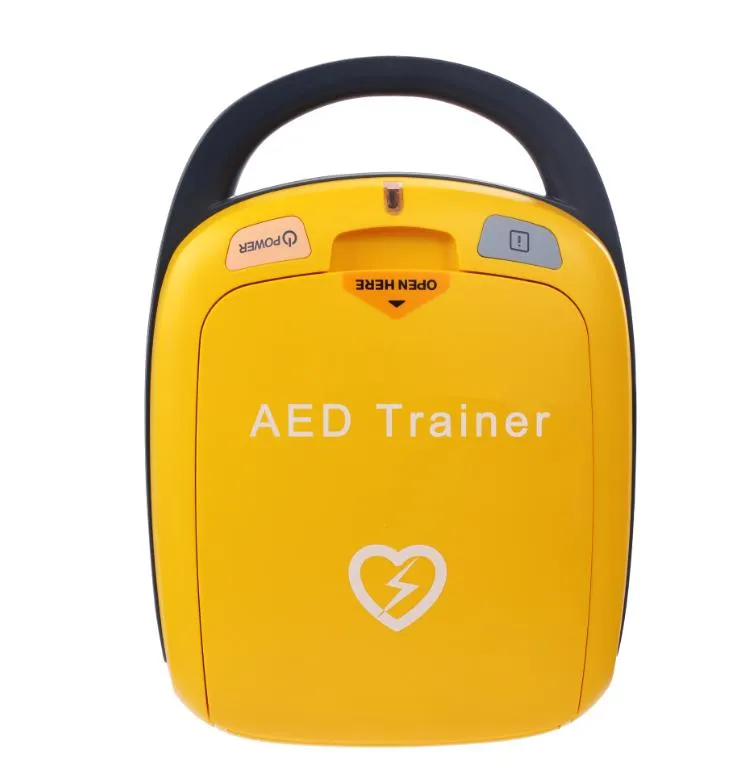

AED Feature 3

Advantage of Low Energy BTE

⭐Automatic compensation and adjustment of waveform as per load impedance
⭐Shorter time in ECG analysis and shock preparation
⭐Simultaneous ECG analysis and precharging
⭐Higher success rate in defibrillating
⭐With minimum injury to myocardium
⭐Better for rehabilitation
⭐Faster in response
📊 Product Parameters
ECG Analysis 8.5 Second Battery Pack Non rechargeable Li-MnO2 battery, 12V, 6000 mAh, 4 year lifetime
Hi-Cap Charging 8 Second Shock Frequency Not less than 400 times
Shock output 50 J (child), 150 J (adult) Electrode Pads Disposable and adhesive, Adult/pediatric compatible, Preinstalled, 6 year lifetime
Data Storage 90 minutes each for ECG data and around sounds Voice Guide English/Chinese, Customized languages
Data Transfer Bluetooth Net Weight 2.3 Kg

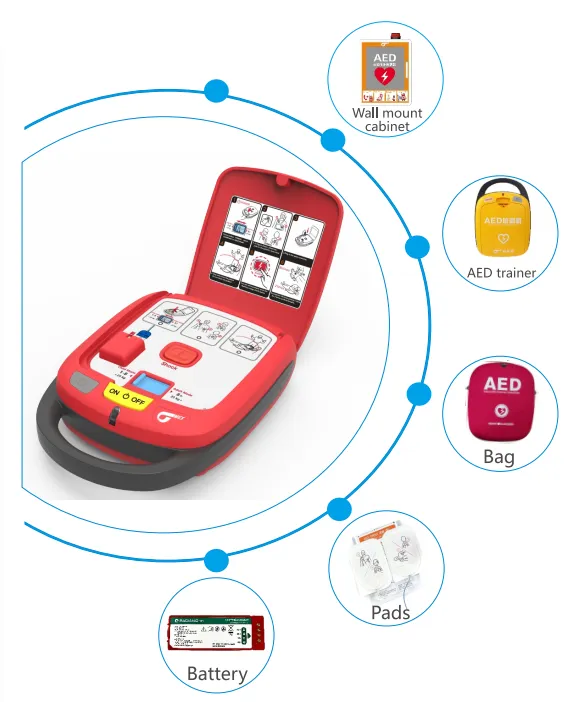

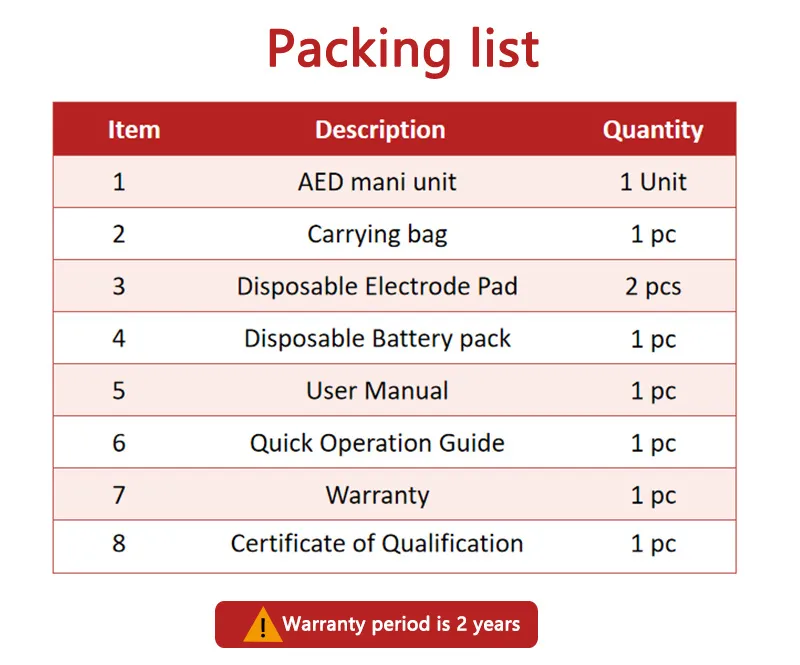

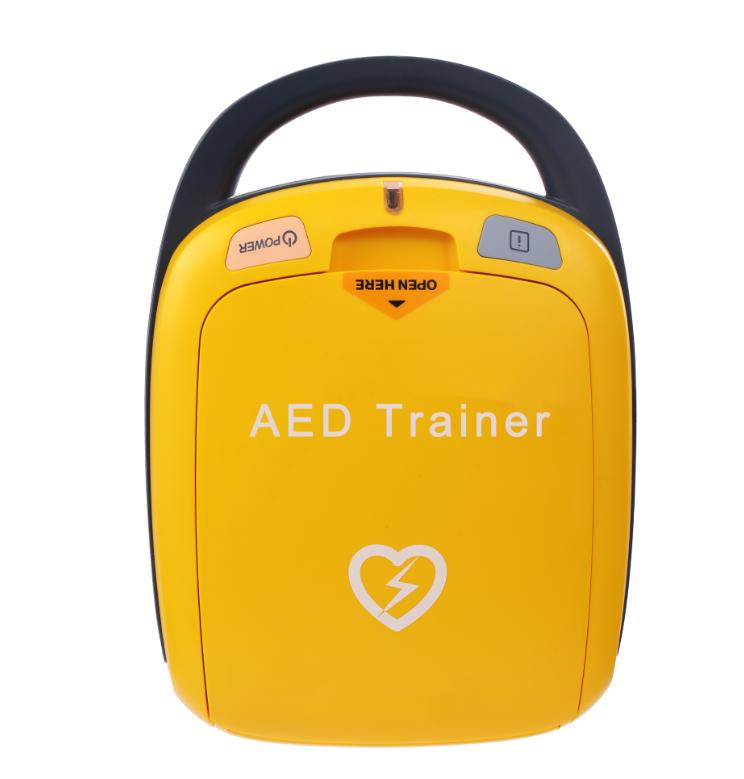

Standard Configuration 1 x main unit, 1 x battery pack, 1 x electrode pads (2 pcs), 1 x carry case Optional Configuration Standing/wall mount cabinet, AED trainer, First aid kit, PC software
📸 Detailed Photos

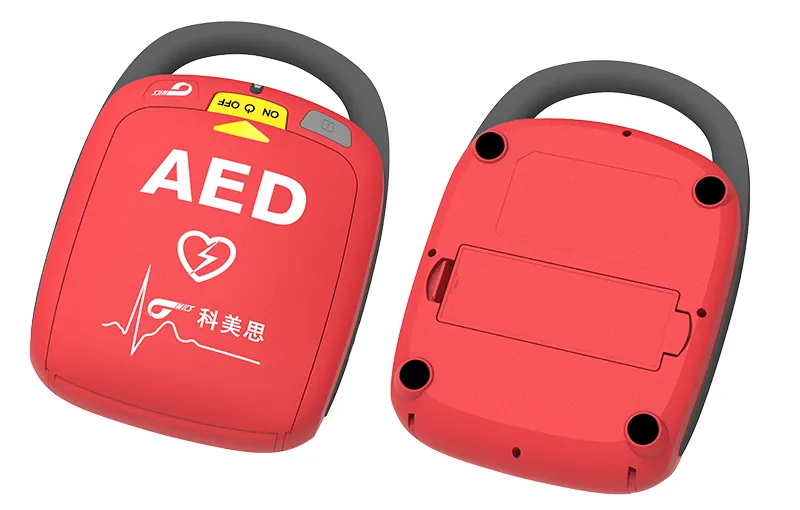

Detailed View 1

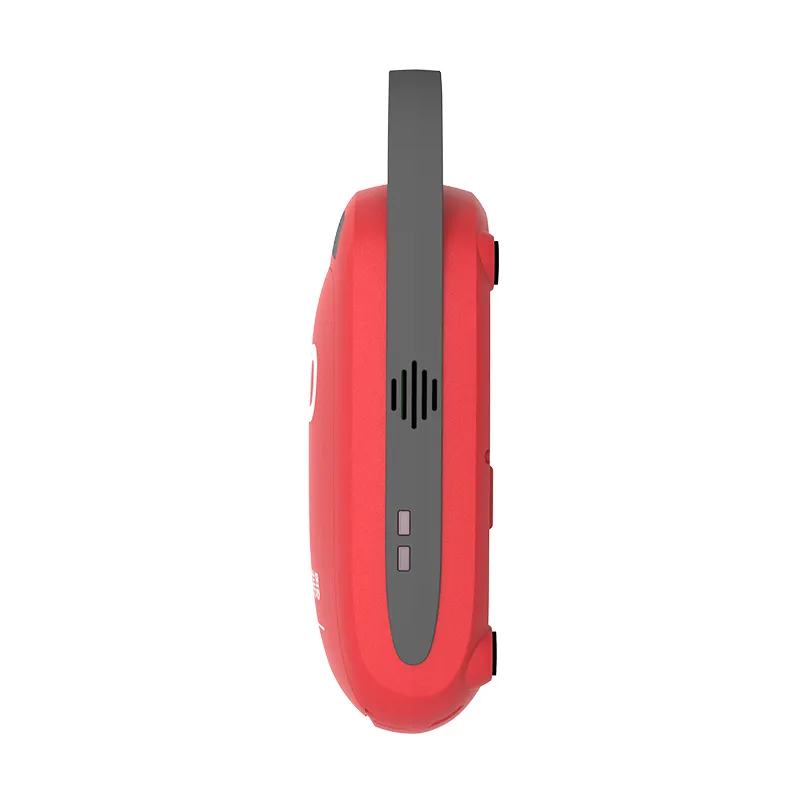

Detailed View 2
Detailed View 3

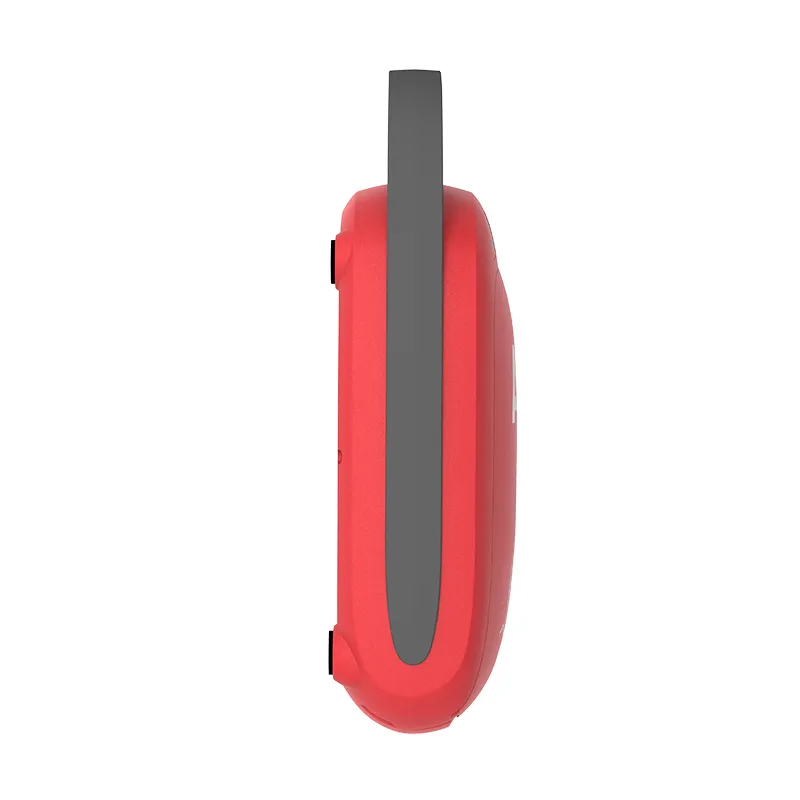

Detailed View 4

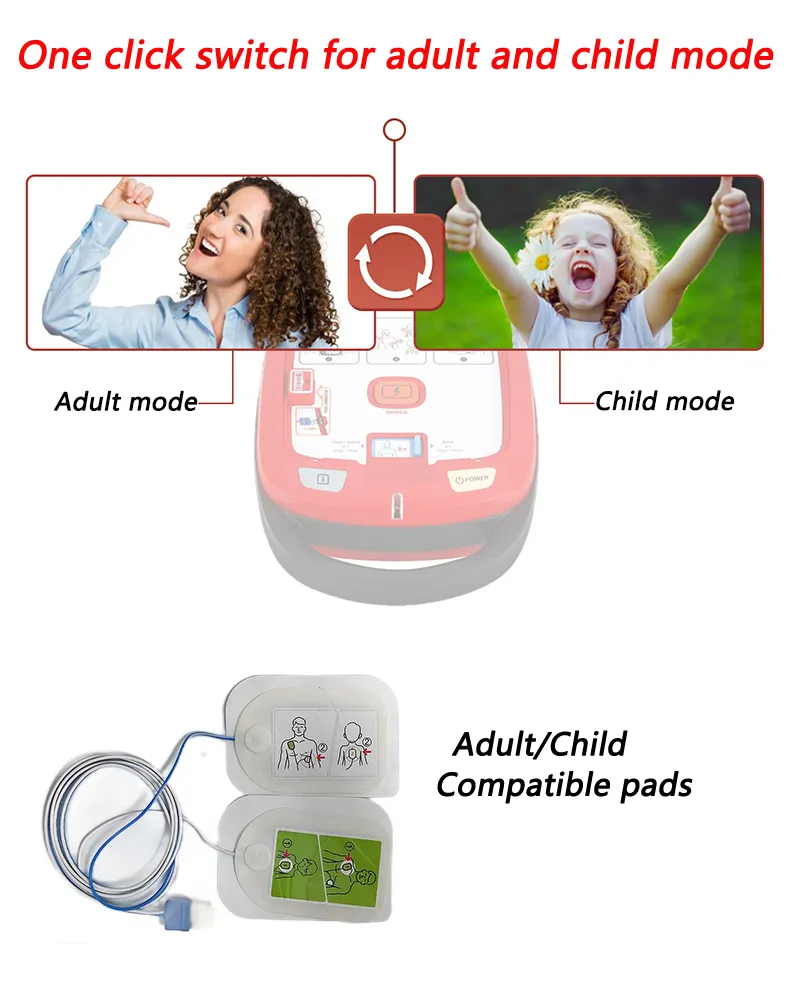

Detailed View 5
Detailed View 6
Detailed View 7
🏢 Factory Display
Factory View 1
Factory View 2

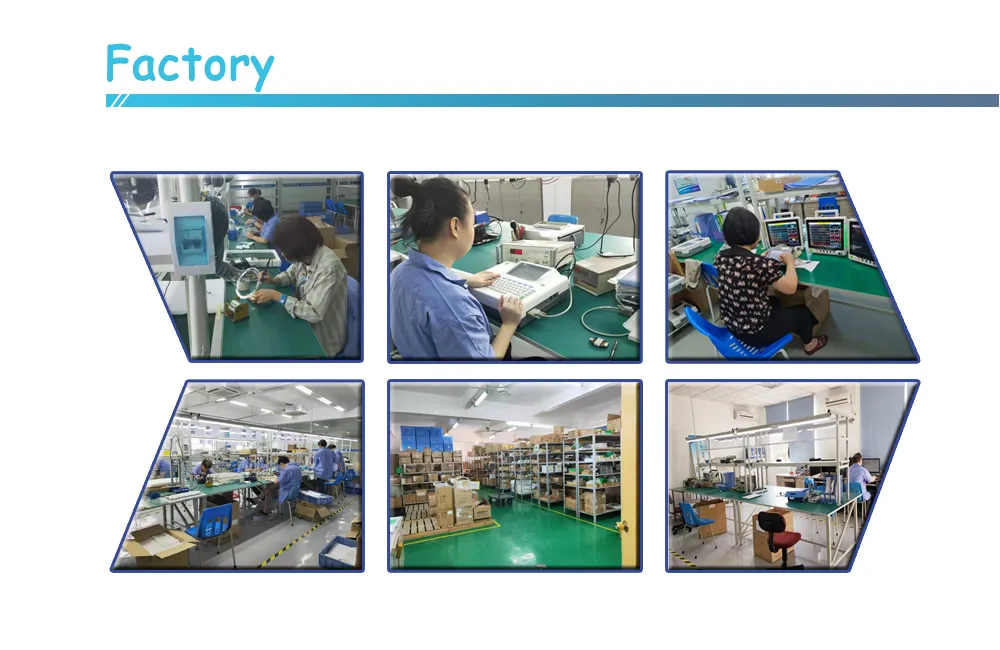

Factory View 3
Factory View 4
Factory View 5
❓ Frequently Asked Questions
1. What is the battery capacity and lifespan of the Altai DP1?
The device uses a non-rechargeable Li-MnO2 battery (12V, 6000 mAh) with a 4-year lifetime, capable of supporting up to 400 shocks.
2. Are the electrode pads compatible with both adults and children?
Yes, the preinstalled electrode pads are compatible with both adults and children, and the device features specific adult and child modes.
3. How is the data retrieved from the AED?
Data can be retrieved via Bluetooth. The device automatically records ECG data and ambient sounds for up to 90 minutes.
4. What languages are available for the voice guide?
The standard voice guide is available in English and Chinese, but other languages can be customized upon request.
5. What is the warranty period for this AED?
The Altai DP1 comes with a 2-year warranty for the main unit.
6. How long does it take for the device to analyze and charge?
ECG analysis takes approximately 8.5 seconds, and high-capacity charging takes about 8 seconds.
